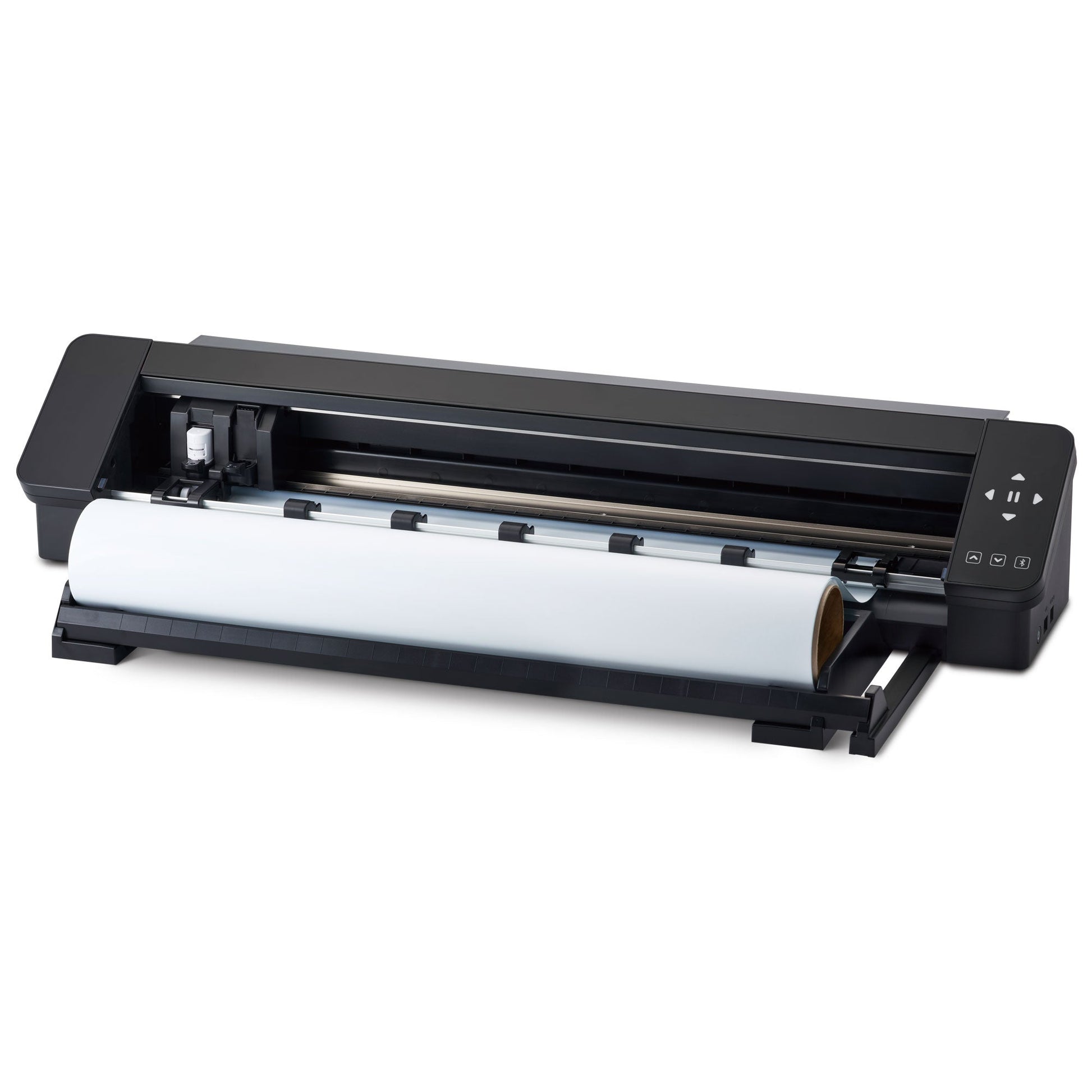

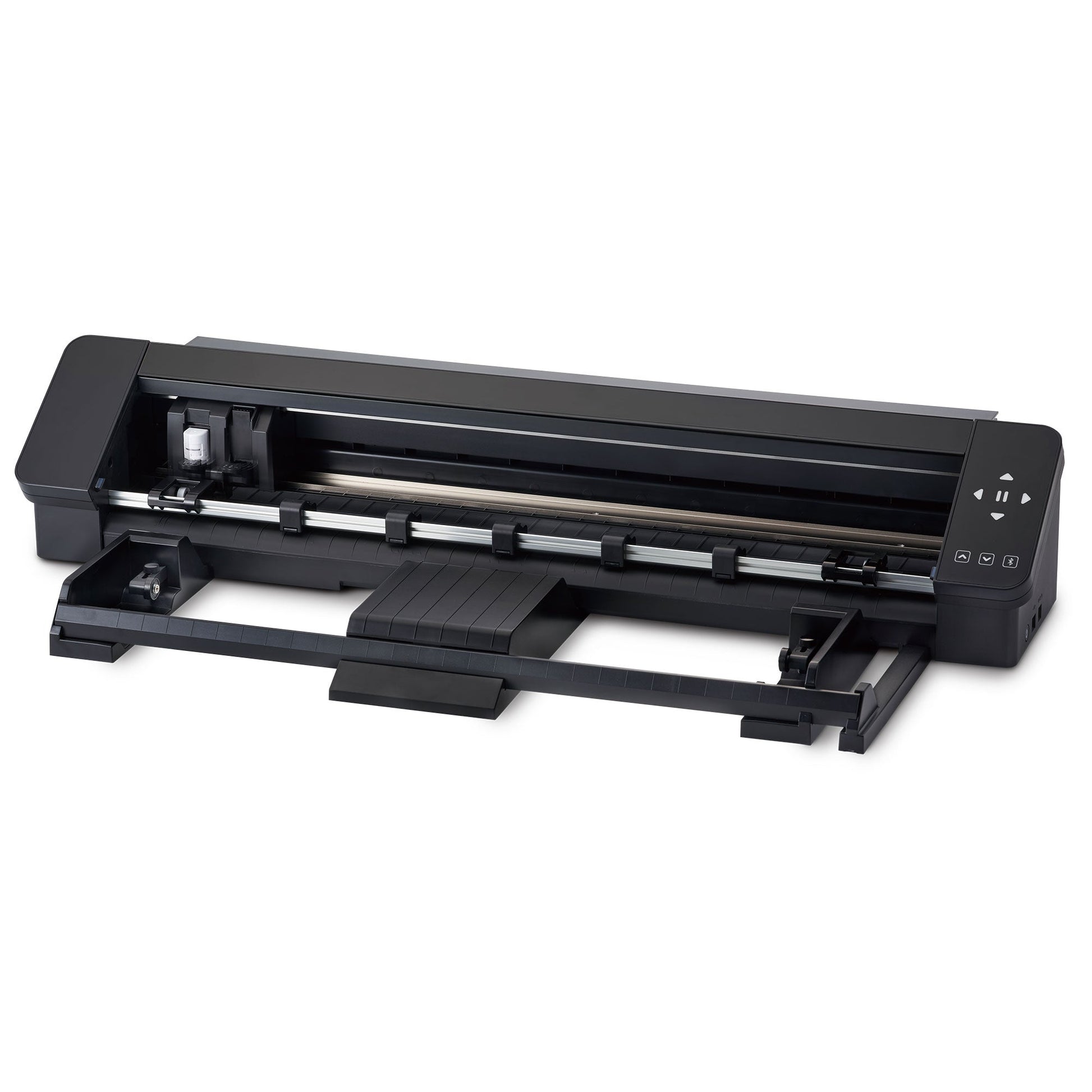

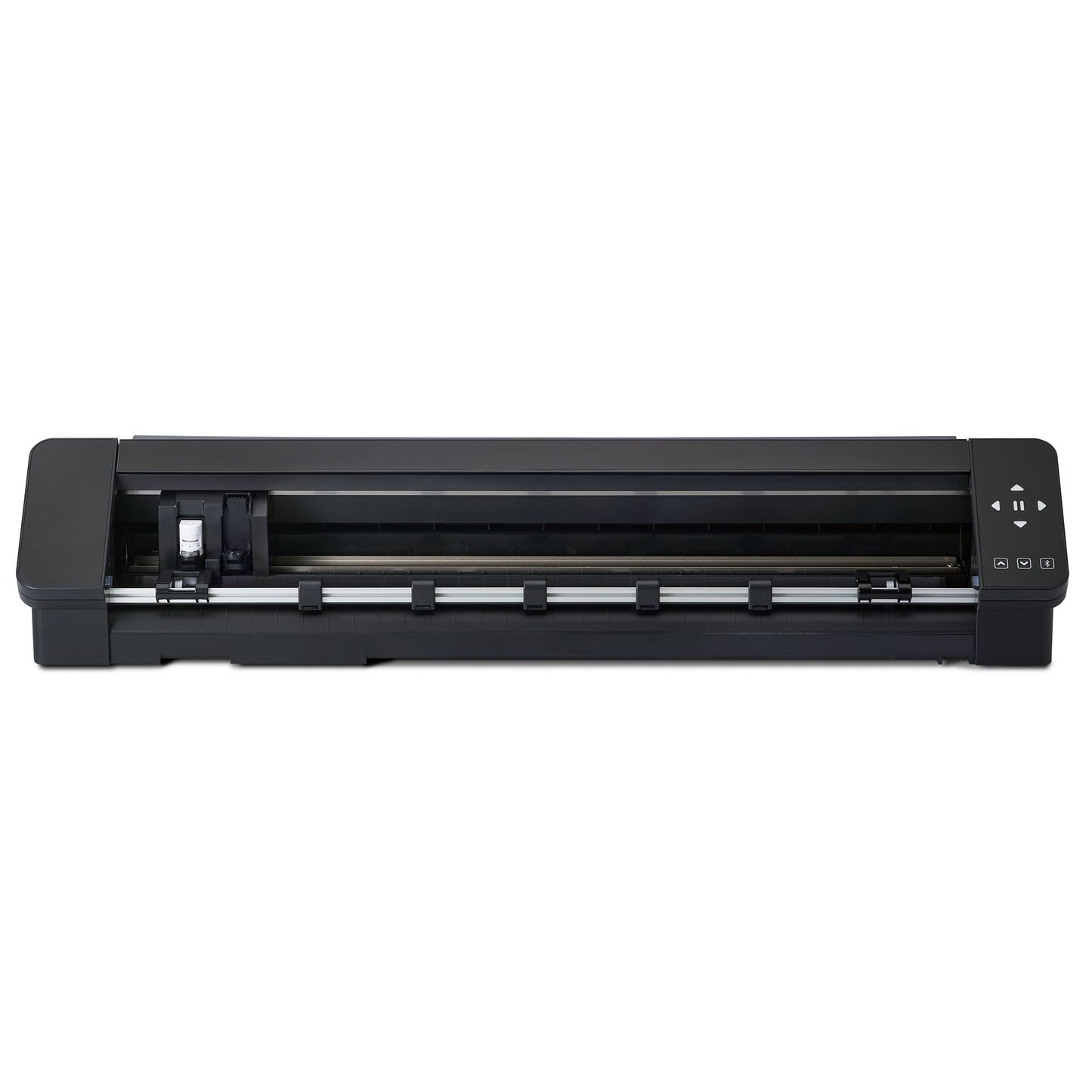

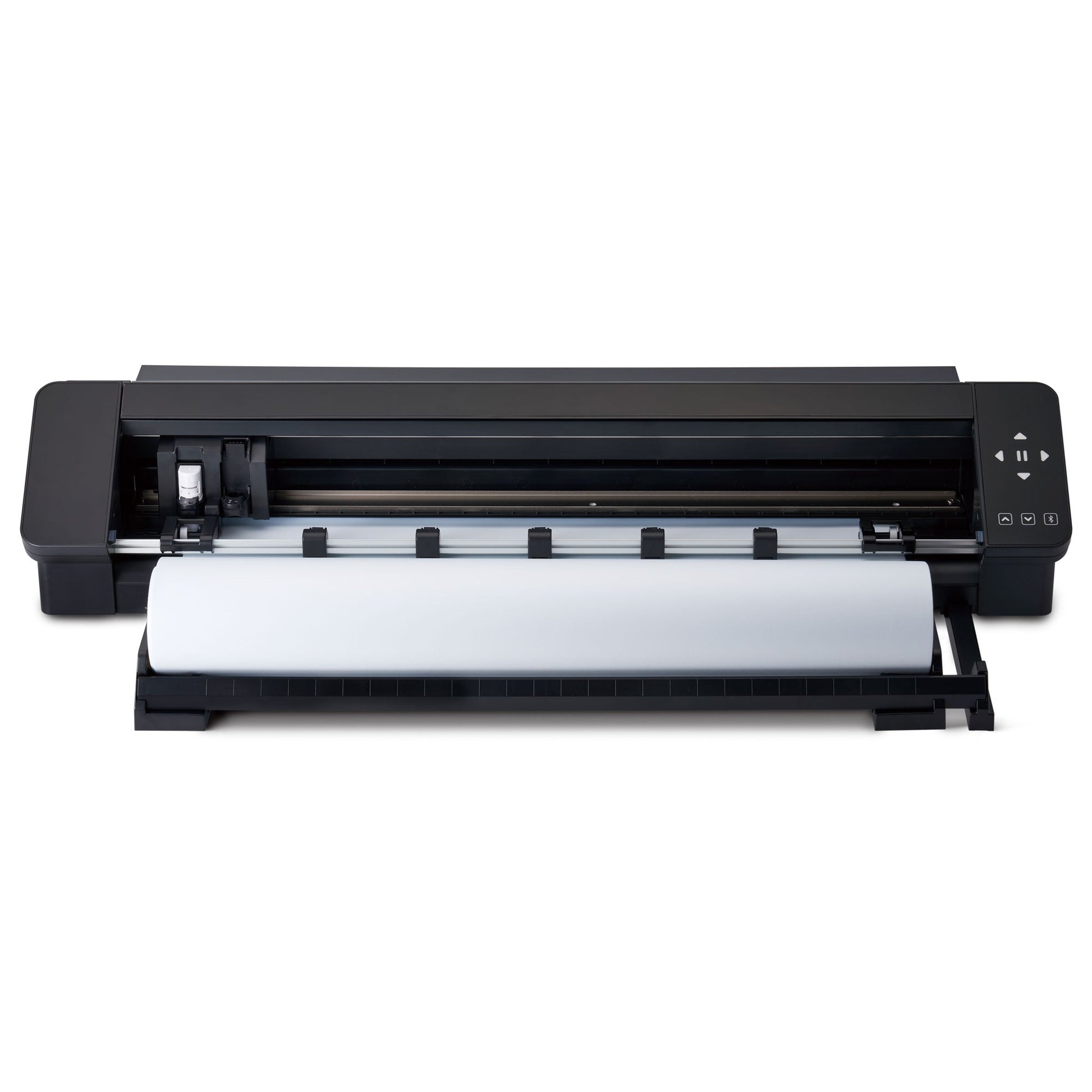

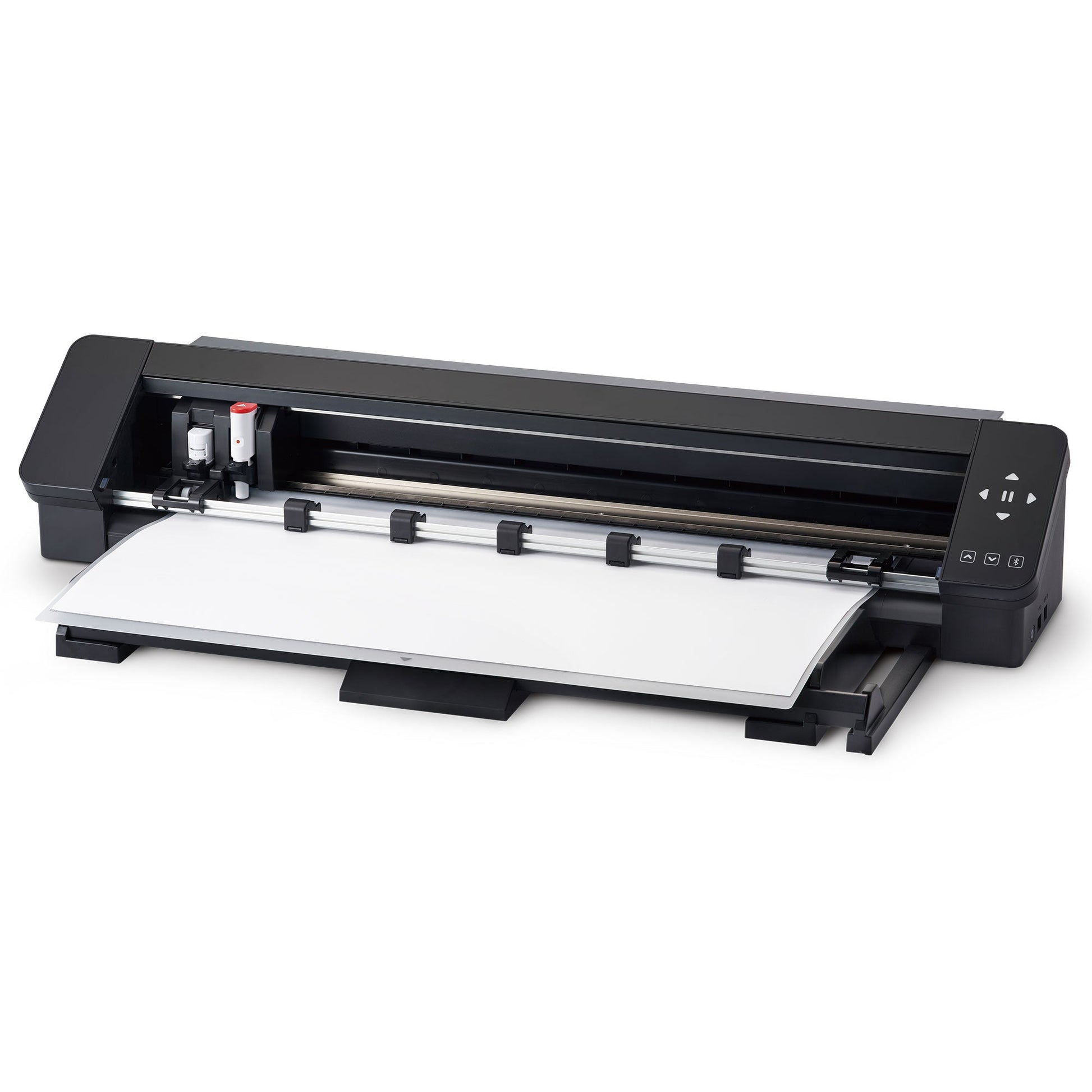

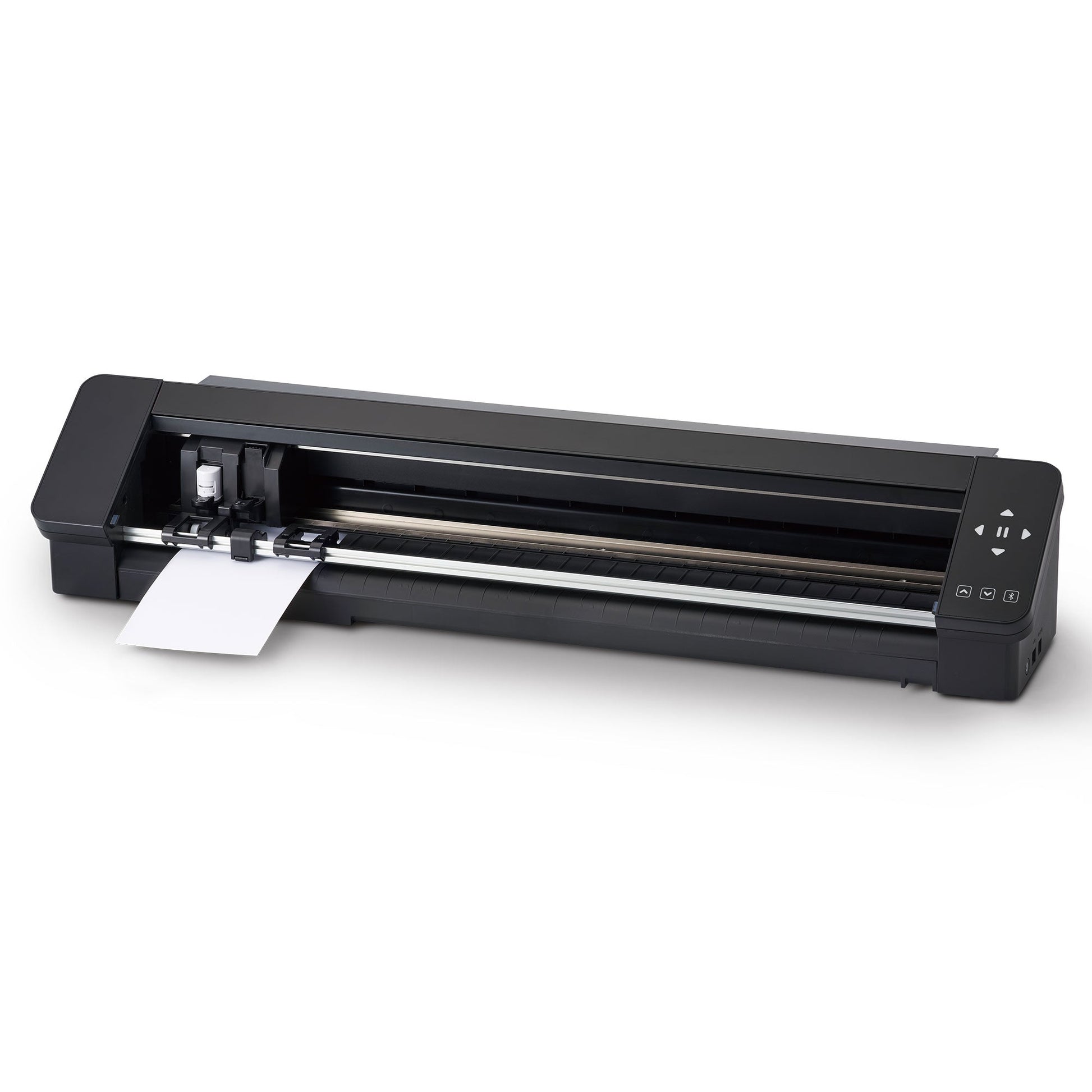

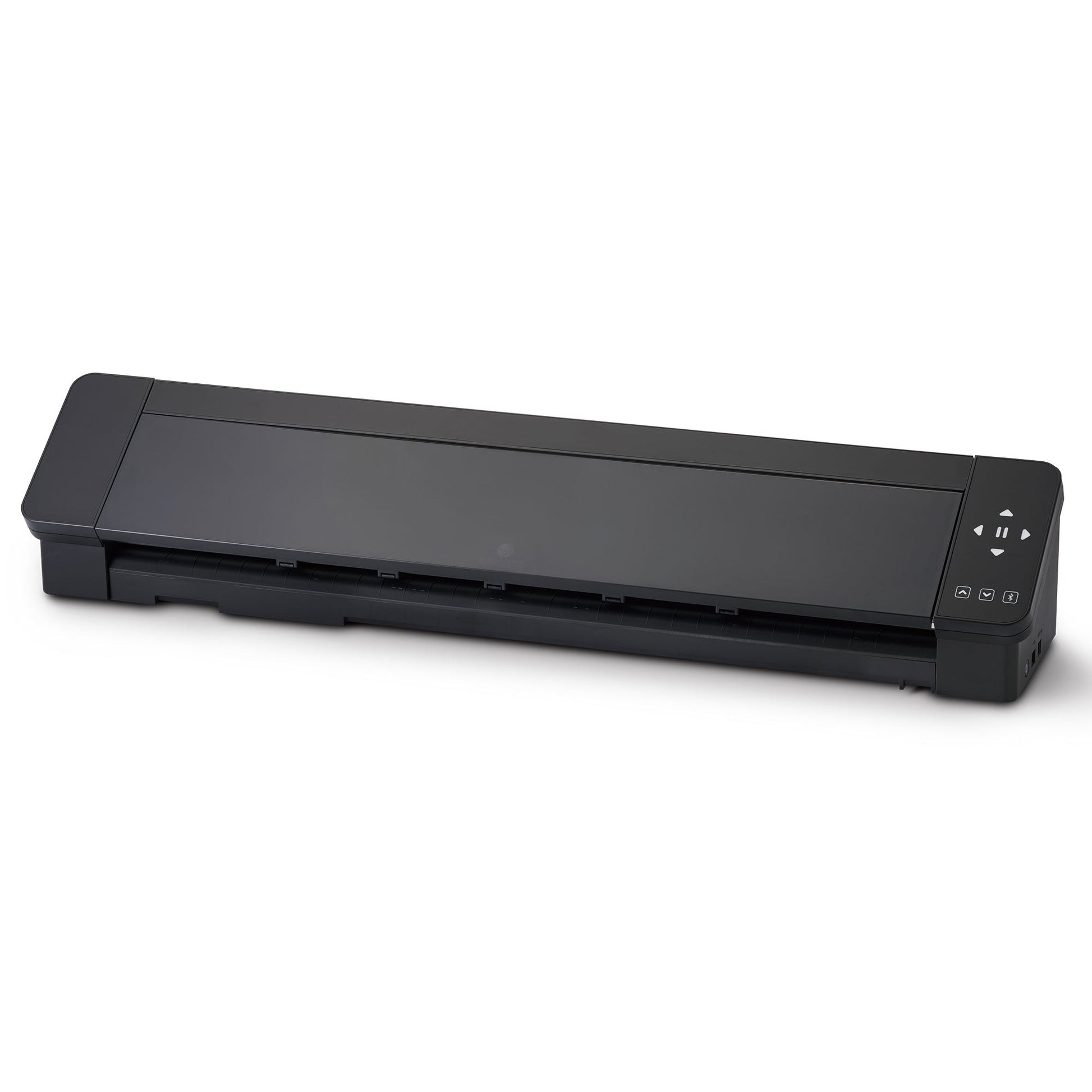

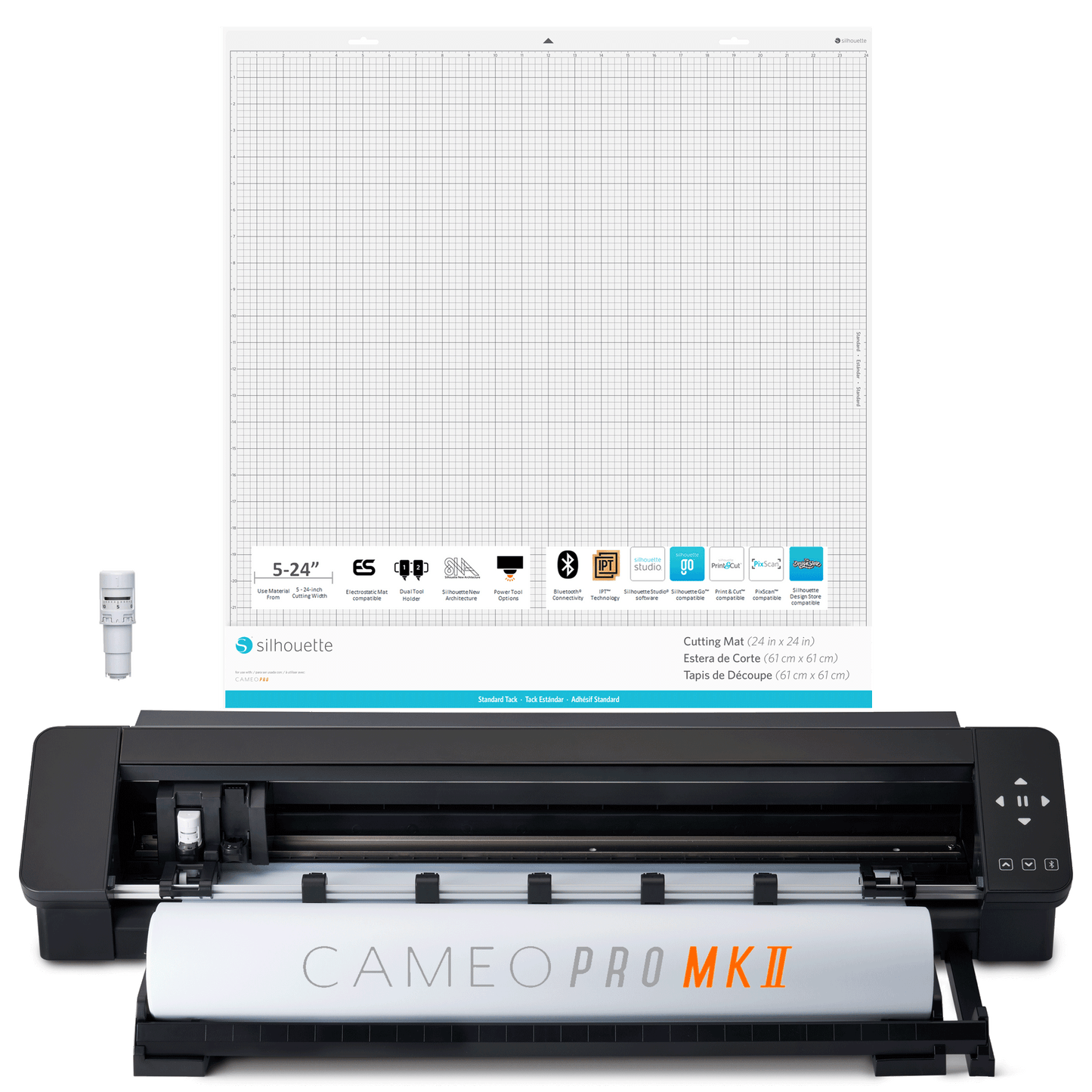

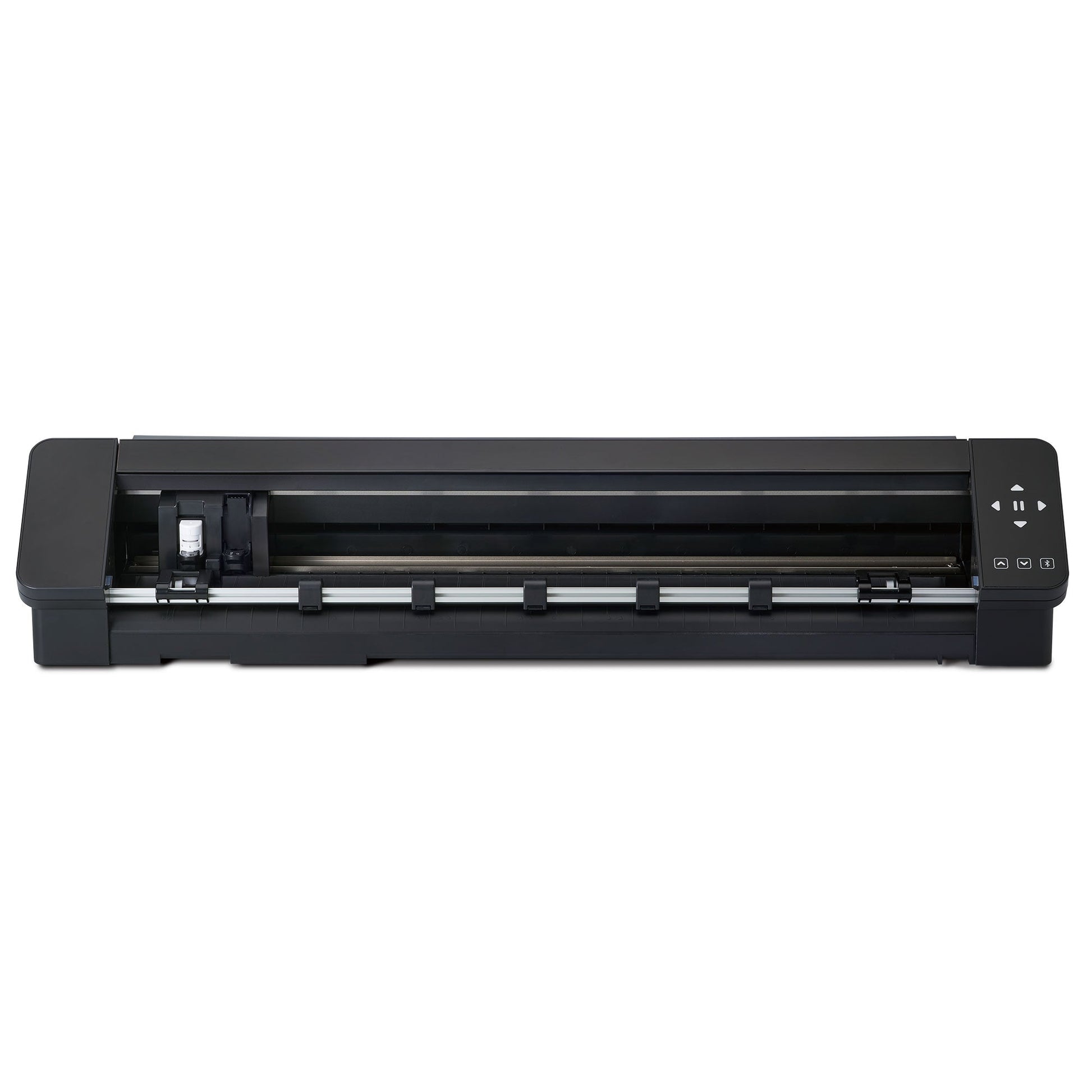

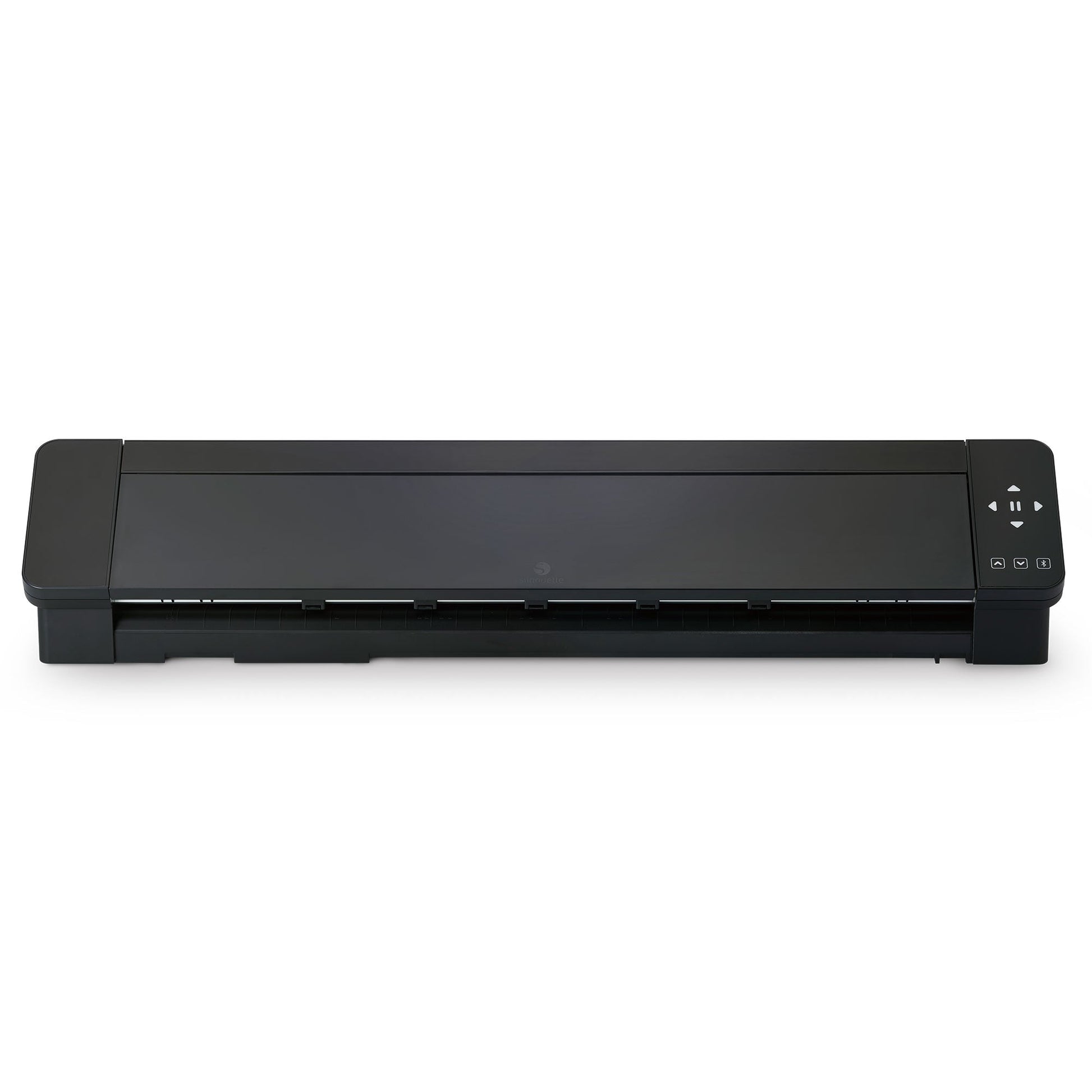

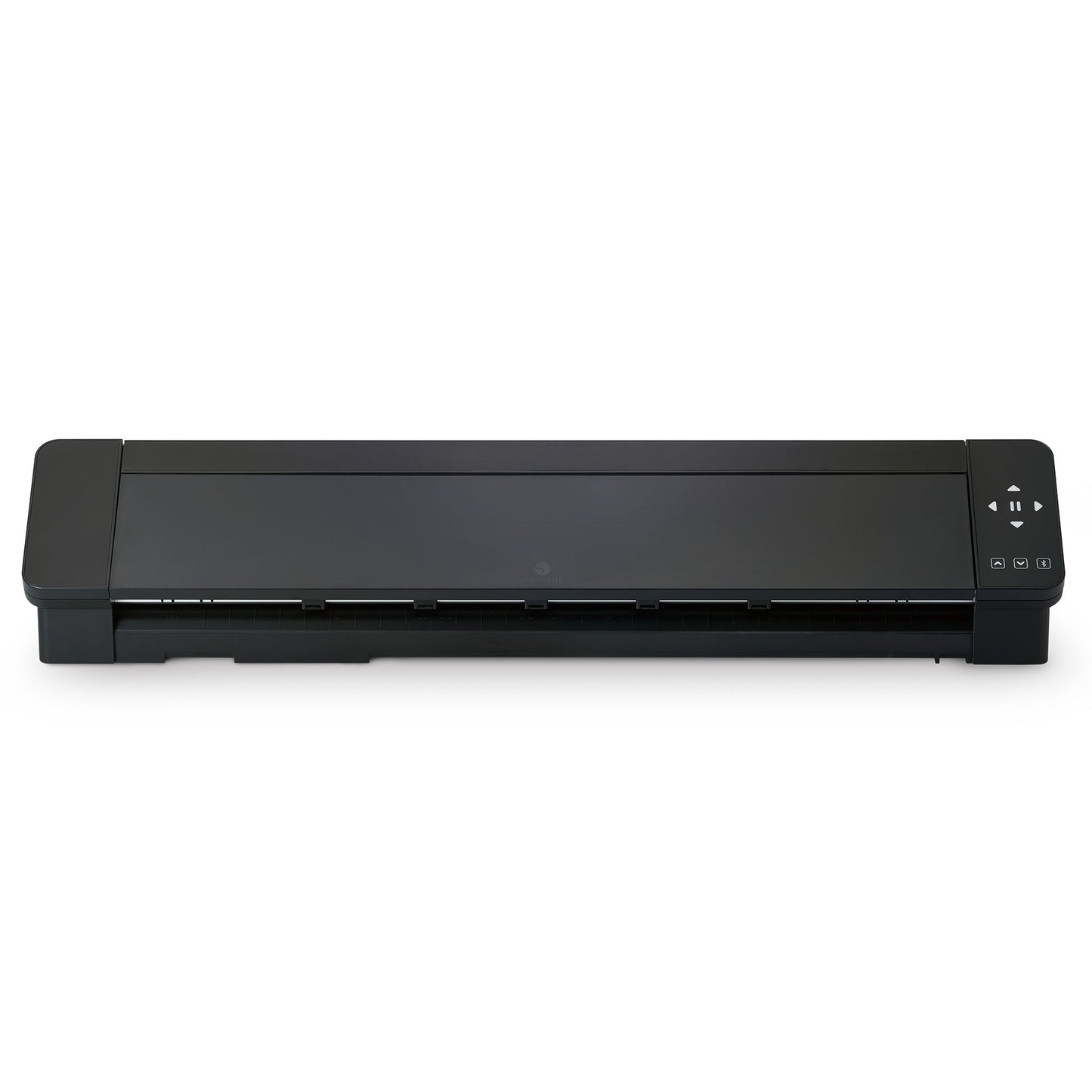

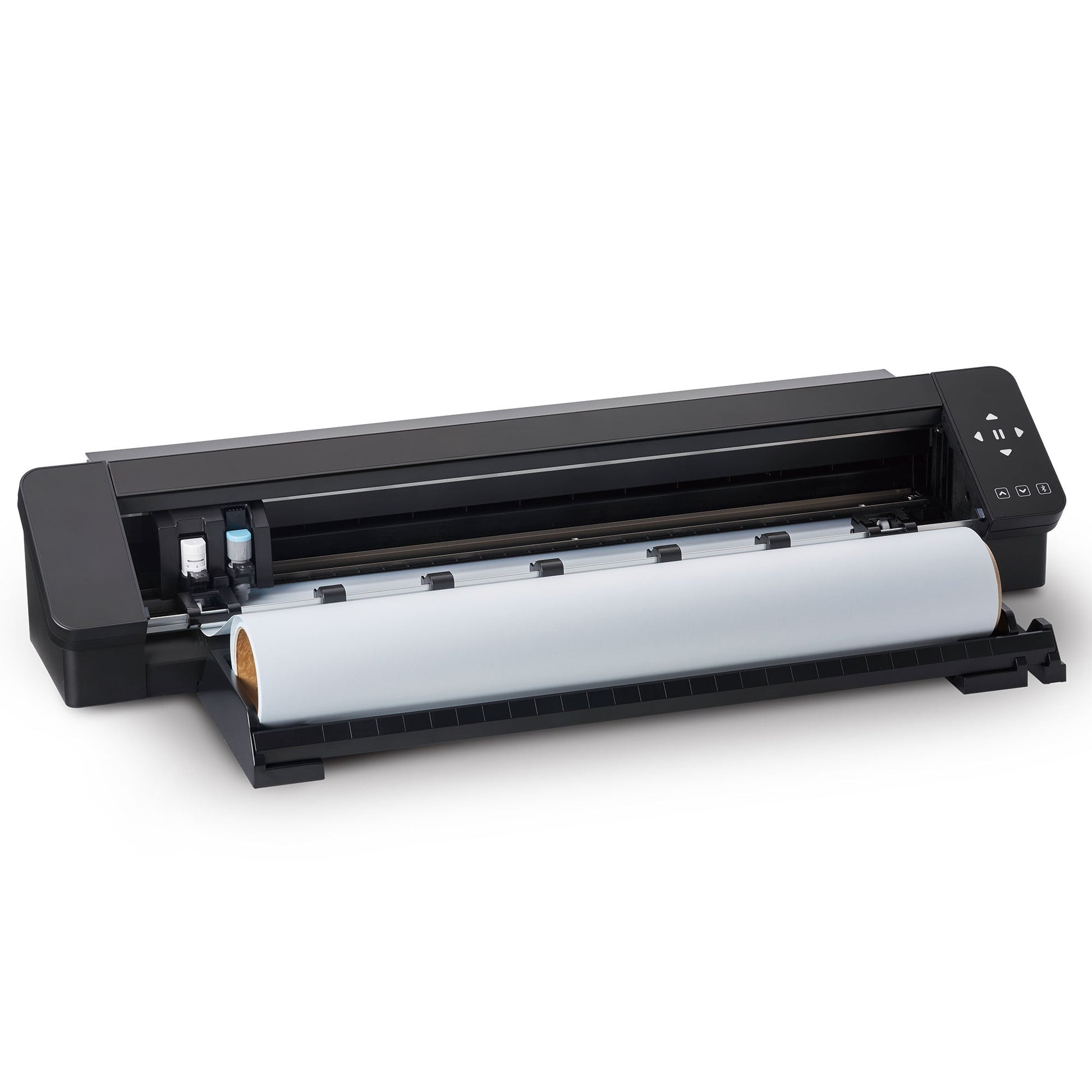

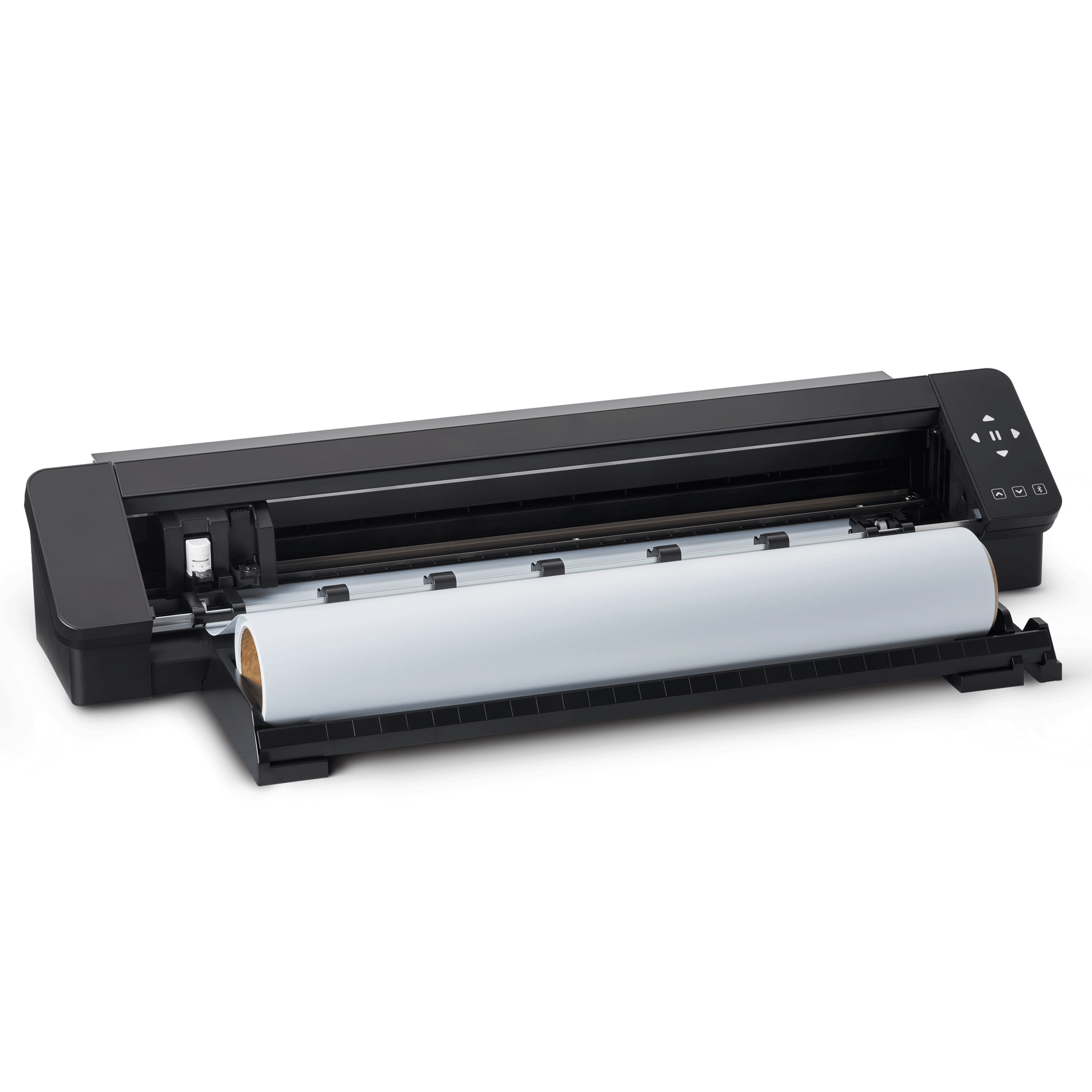

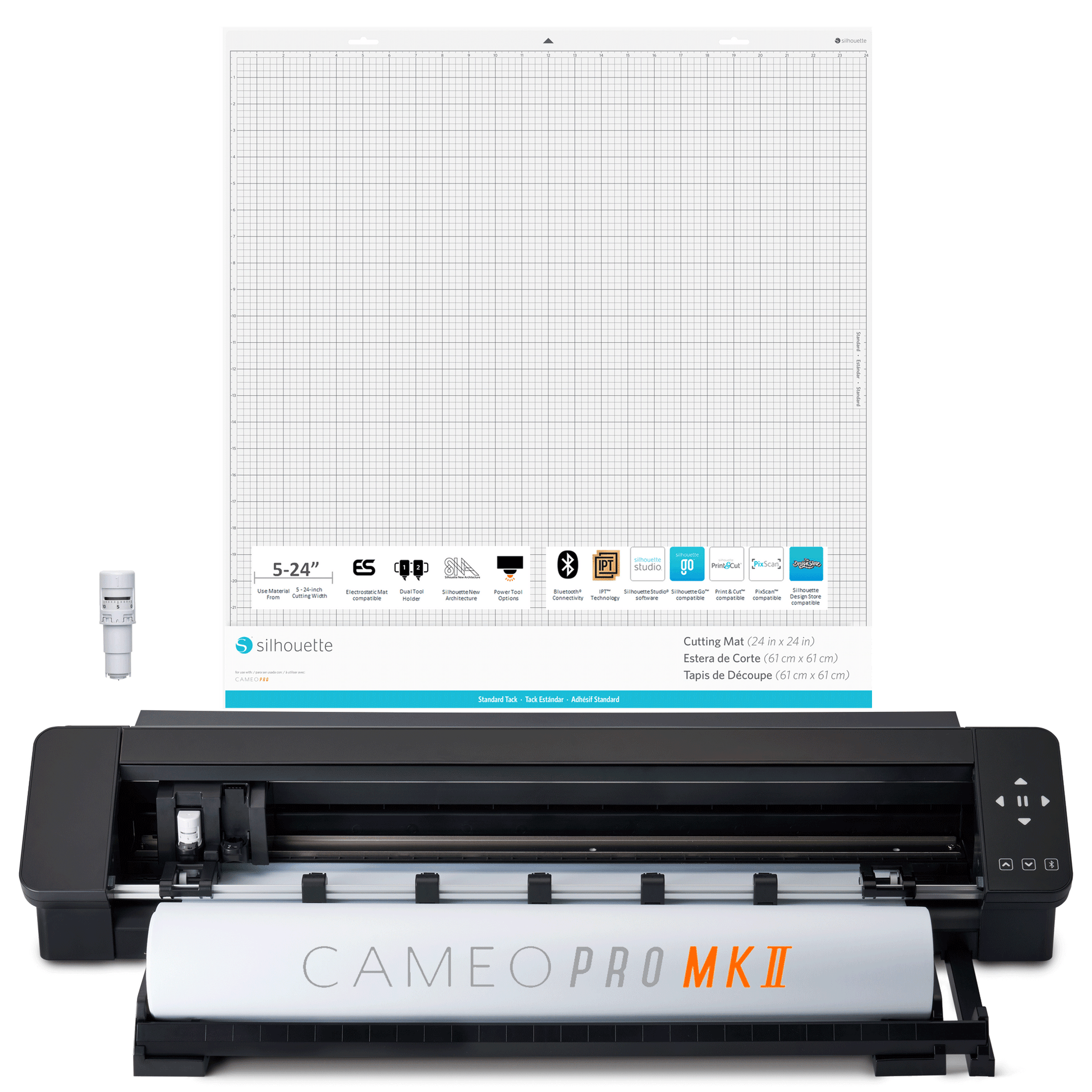

Silhouette CAMEO Pro MK-II 24 inch Vinyl Cutting Machine

Enhanced Functionality and Ease of Use

The Silhouette CAMEO PRO MK-II introduces a suite of advanced features designed to elevate your creative process. With a second powered carriage, quieter operation, and an emergency stop function, this cutting machine offers enhanced safety, efficiency, and user-friendly operation.

A standout feature is its 24-inch cutting width, one of the largest available, enabling larger-scale designs and efficient handling of multiple smaller cuts simultaneously. Stability improvements, such as auxiliary rollers, and expanded power tool capabilities, including a heat pen for intricate foil stamping, provide unmatched versatility. The repeat function simplifies repetitive tasks, optimizing workflow for creative professionals and hobbyists alike.

Additional Features to Enhance Your Experience:

• Enhanced Vinyl Utilization: Designed for efficient material use and minimal waste.
• Time-Saving Operation: Quieter performance and workflow enhancements increase productivity.
• Foil Stamping: The heat pen unlocks the ability to create metallic designs on paper and faux leather.
• Embossing & Debossing: Specialized tools enable intricate raised or pressed designs on a variety of materials.
• Calligraphy Support: A redesigned pen holder accommodates calligraphy pens for limitless creative expression.

Improved Stability & Versatility

Enhanced loadability and additional auxiliary rollers ensure smooth operation, while new power tools like the heat pen expand the possibilities for diverse projects.

Larger Cutting Width for Bigger Ideas

The 24-inch cutting width offers unparalleled versatility, making it easy to create large designs or handle multiple smaller projects at once.

Technical Specifications:

• Maximum Cutting Length: 16 ft (4876.8 mm)
• Guaranteed Operating Area:
  • With cutting mat: 23.2" × 24" (590 mm × 610 mm)
  • With lined material: 23.6" × 192" (600 mm × 4876.8 mm)
• Maximum Material Thickness: 3 mm
• Maximum Cutting Speed: 300 mm/s
• Cutting Force (Tool Holder 1): 300 gf
• Mechanical Resolution: 0.00625 mm
• Programmable Resolution: 0.05 mm
• Registration Mark Reading: Yes
• Number of Plunger Mounts: 2
• Automatic Blade Adjustment: Yes

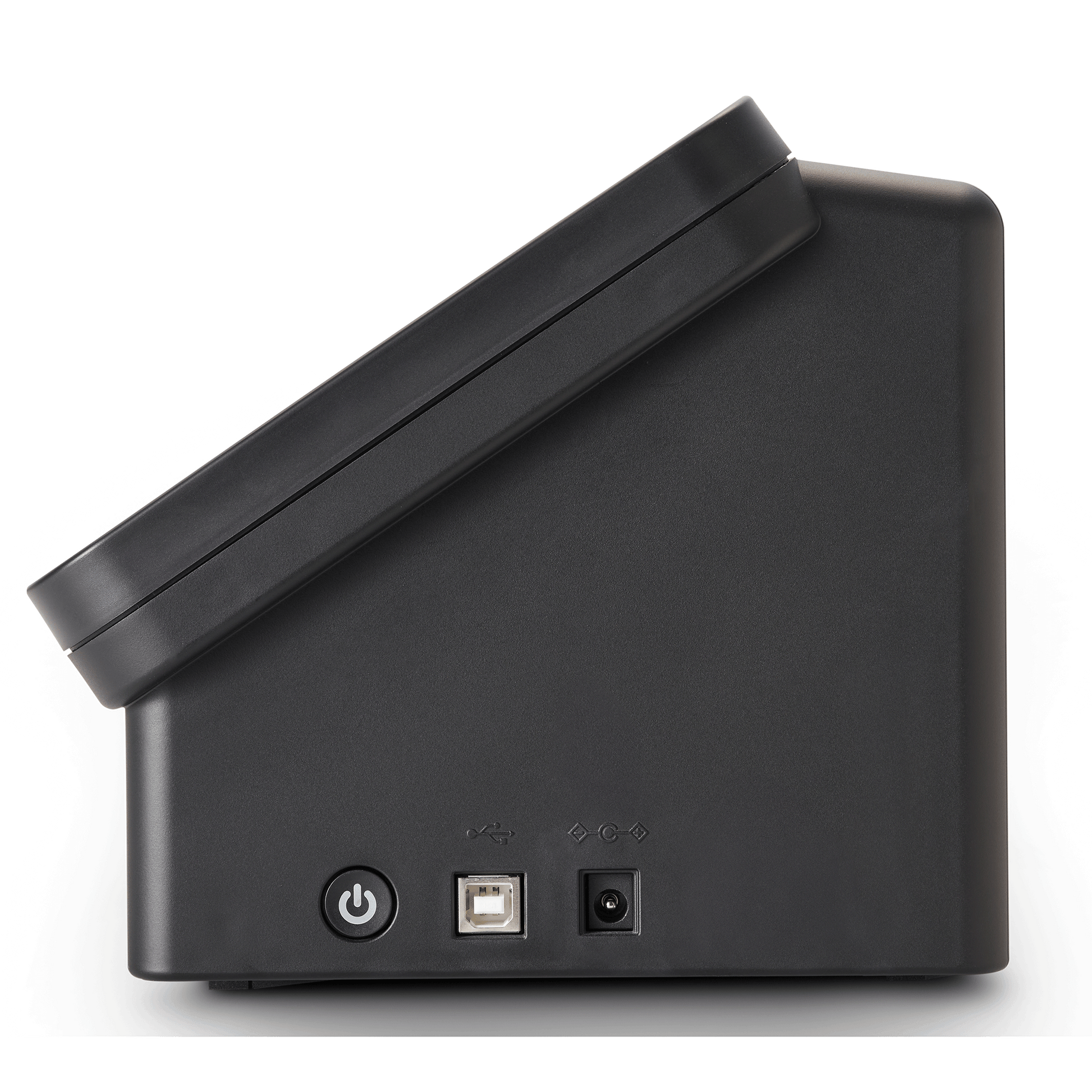

• Interfaces: USB 2.0 (FULL-speed) / Bluetooth
• Power Supply: AC adapter, 24 VDC (1.25 A)
• Power Consumption: 27 W
• Working Environment: 10 to 35°C, 35–75% RH (non-condensing)
• Unit Dimensions (W x D x H): 34.49" x 7.68" x 6.69" (876 mm × 195 mm × 170 mm)
• Unit Weight: 19.84 lbs. (9.0 kg)
• Compatible Operating Systems: Windows 10 or higher / macOS 10.10 or higher

The Silhouette CAMEO PRO MK-II combines functionality, versatility, and ease of use, offering the perfect tool to bring your creative visions to life. Whether you’re tackling large-scale projects or crafting intricate designs, this machine delivers professional results with every use.
